Dynamic Application Scaling Using Kubernetes Event-Driven Autoscaling
KEDA?
KEDA (Kubernetes Event-Driven Autoscaling) is a Kubernetes-based Event Driven Autoscaler. With KEDA, you can scale any container in Kubernetes based on the number of events that need processing. (KEDA official page)
Why do we need KEDA?
Kubernetes gives us a built-in way to handle horizontal scaling. The tool that lets us do this is called the Horizontal Pod Autoscaler (HPA).
However, HPA is quite basic, as it only scales workloads based on CPU and RAM usage, which isn’t always enough!
Although HPA can be set up to use custom metrics, it's not quick or easy to configure.
That's why we need something more – a solution that can scale workloads based on information from any source, such as:
Monitoring systems
Queue systems
Cloud resources
KEDA allows us to do this and to have a horizontal scaling system with no limits, scaling your application easily and efficiently!
Check the KEDA official page to see all the event source that supports!
Let’s try it now!
Step 1: Prometheus
Let’s start by deploying Prometheus to use it as our data source for autoscaling. Prometheus is a powerful monitoring and alerting toolkit that is widely used in the Kubernetes ecosystem. We will use the kube-prometheus stack, which provides a complete monitoring solution for Kubernetes clusters. This stack includes Prometheus, Alertmanager, and Grafana, along with various exporters to collect metrics from the Kubernetes components.
First, we need to install the kube-prometheus stack. This can be done using Helm, a package manager for Kubernetes. Ensure that you have Helm installed and configured on your cluster. Then, add the Prometheus community Helm repository:
helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo update
Next, install the kube-prometheus stack using the following command:
helm install kube-prometheus-stack prometheus-community/kube-prometheus-stack --namespace monitoring --create-namespace
This command will deploy Prometheus, Alertmanager, and Grafana into the monitoring namespace. It will also set up various exporters to collect metrics from the Kubernetes API server, kubelets, and other components.
KEDA should scale our application based on the metrics collected by Prometheus.
Run terraform apply and check that workloads is running as expected:
> k get all -n kube-prometheus-stack
NAME READY STATUS RESTARTS AGE
pod/lupass-prometheus-node-exporter-hr24t 1/1 Running 5 (140m ago) 7d16h
pod/alertmanager-lupass-kube-prometheus-sta-alertmanager-0 2/2 Running 8 (140m ago) 7d16h
pod/lupass-grafana-7b9744f967-85n66 3/3 Running 12 (140m ago) 7d16h
pod/prometheus-lupass-kube-prometheus-sta-prometheus-0 2/2 Running 8 (140m ago) 7d16h
pod/lupass-kube-state-metrics-7846ddf98b-vtgc9 1/1 Running 8 (139m ago) 7d16h
pod/lupass-kube-prometheus-sta-operator-f4cc44cbb-7z7fr 1/1 Running 8 (139m ago) 7d16h
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/lupass-grafana ClusterIP 10.43.152.9 <none> 80/TCP 7d16h
service/lupass-kube-state-metrics ClusterIP 10.43.192.213 <none> 8080/TCP 7d16h
service/lupass-kube-prometheus-sta-alertmanager ClusterIP 10.43.56.188 <none> 9093/TCP 7d16h
service/lupass-kube-prometheus-sta-operator ClusterIP 10.43.226.111 <none> 443/TCP 7d16h
service/lupass-prometheus-node-exporter ClusterIP 10.43.126.7 <none> 9100/TCP 7d16h
service/alertmanager-operated ClusterIP None <none> 9093/TCP,9094/TCP,9094/UDP 7d16h
service/prometheus-operated ClusterIP None <none> 9090/TCP 7d16h
service/lupass-kube-prometheus-sta-prometheus LoadBalancer 10.43.178.116 172.24.87.51 9090:30881/TCP 7d16h
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
daemonset.apps/lupass-prometheus-node-exporter 1 1 1 1 1 kubernetes.io/os=linux 7d16h
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/lupass-grafana 1/1 1 1 7d16h
deployment.apps/lupass-kube-state-metrics 1/1 1 1 7d16h
deployment.apps/lupass-kube-prometheus-sta-operator 1/1 1 1 7d16h
NAME DESIRED CURRENT READY AGE
replicaset.apps/lupass-grafana-7b9744f967 1 1 1 7d16h
replicaset.apps/lupass-kube-state-metrics-7846ddf98b 1 1 1 7d16h
replicaset.apps/lupass-kube-prometheus-sta-operator-f4cc44cbb 1 1 1 7d16h
NAME READY AGE
statefulset.apps/alertmanager-lupass-kube-prometheus-sta-alertmanager 1/1 7d16h
statefulset.apps/prometheus-lupass-kube-prometheus-sta-prometheus 1/1 7d16h
Step 2: Traefik Ingress Controller
resource "helm_release" "traefik" {
name = "lupass"
repository = "https://traefik.github.io/charts"
chart = "traefik"
version = "23.1.0"
namespace = "ingress"
create_namespace = true
values = [
<<EOF
ports:
web:
exposedPort: 8080
websecure:
exposedPort: 8443
metrics:
prometheus:
service:
enabled: true
serviceMonitor:
enabled: true
addServicesLabels: true
EOF
]
}
Run terraform apply and check that all is running as expected:
> k get all -n ingress
NAME READY STATUS RESTARTS AGE
pod/lupass-traefik-78c596fbd-hzw7b 1/1 Running 3 (4h16m ago) 2d21h
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/lupass-traefik-metrics ClusterIP 10.43.18.114 <none> 9100/TCP 2d21h
service/lupass-traefik LoadBalancer 10.43.181.236 172.24.87.51 8080:31680/TCP,8443:32307/TCP 2d21h
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/lupass-traefik 1/1 1 1 2d21h
NAME DESIRED CURRENT READY AGE
replicaset.apps/lupass-traefik-796ff65c8d 0 0 0 2d21h
replicaset.apps/lupass-traefik-78c596fbd 1 1 1 2d21h
Step 3: KEDA
resource "helm_release" "keda" {
name = "lupass"
repository = "https://kedacore.github.io/charts"
chart = "keda"
version = "2.10.2"
namespace = "keda"
create_namespace = true
}
Run terraform apply and check that all is running as expected:
> k get all -n keda
NAME READY STATUS RESTARTS AGE
pod/keda-operator-metrics-apiserver-895f85797-mggsv 1/1 Running 5 (4h25m ago) 7d19h
pod/keda-admission-webhooks-7b8bb94465-vv57b 1/1 Running 6 (4h25m ago) 7d19h
pod/keda-operator-7d866b5f64-s8zb6 1/1 Running 6 (4h25m ago) 7d19h
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/keda-admission-webhooks ClusterIP 10.43.228.69 <none> 443/TCP 7d19h
service/keda-operator ClusterIP 10.43.73.78 <none> 9666/TCP 7d19h
service/keda-operator-metrics-apiserver ClusterIP 10.43.251.89 <none> 443/TCP,80/TCP 7d19h
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/keda-operator-metrics-apiserver 1/1 1 1 7d19h
deployment.apps/keda-admission-webhooks 1/1 1 1 7d19h
deployment.apps/keda-operator 1/1 1 1 7d19h
NAME DESIRED CURRENT READY AGE
replicaset.apps/keda-operator-metrics-apiserver-895f85797 1 1 1 7d19h
replicaset.apps/keda-admission-webhooks-7b8bb94465 1 1 1 7d19h
replicaset.apps/keda-operator-7d866b5f64 1 1 1 7d19h
Step 4: Deploy your application (we use podinfo as example workload) and expose it via Traefik with Ingress Resource:
resource "helm_release" "pod_info" {
name = "lupass"
repository = "https://stefanprodan.github.io/podinfo"
chart = "podinfo"
version = "6.3.6"
namespace = "podinfo"
create_namespace = true
values = [
<<EOF
ingress:
hosts:
- paths:
- path: /
pathType: Prefix
enabled: true
className: lupass-traefik
EOF
]
}
> k get all -n podinfo
NAME READY STATUS RESTARTS AGE
pod/lupass-podinfo-6fbb499f65-cr6p6 1/1 Running 0 4h19m
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/lupass-podinfo ClusterIP 10.43.123.152 <none> 9898/TCP,9999/TCP 2d4h
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/lupass-podinfo 1/1 1 1 2d4h
NAME DESIRED CURRENT READY AGE
replicaset.apps/lupass-podinfo-6fbb499f65 1 1 1 2d4h
> k get ingress -n podinfo
NAME CLASS HOSTS ADDRESS PORTS AGE
lupass-podinfo lupass-traefik * 172.24.87.51 80 2d4h
Step 5: Deploy ScaledObject
ScaledObject is a CRD from KEDA that allows to specify the target workload that we want to scale and the desired configuration of auto-scaling.
The target metric that we use for scaling purpose is traefik_service_requests_total applied to podinfo service. This is the query that we want to use as trigger of our auto-scaling configuration:
max(irate(traefik_service_requests_total{exported_service="podinfo-lupass-podinfo-9898@kubernetes"}[1m]))
It represents the maximum rate of total number of requests to the podinfo service in the last minute interval.
resource "kubernetes_manifest" "scale_podinfo" {
manifest = yamldecode(<<EOF
apiVersion: keda.sh/v1alpha1
kind: ScaledObject
metadata:
name: scale-podinfo
namespace: podinfo
spec:
scaleTargetRef:
apiVersion: apps/v1
kind: Deployment
name: lupass-podinfo
pollingInterval: 10
cooldownPeriod: 150
minReplicaCount: 1
maxReplicaCount: 8
triggers:
- type: prometheus
metadata:
serverAddress: http://lupass-kube-prometheus-sta-prometheus.kube-prometheus-stack:9090
metricName: traefik_service_requests_total
threshold: "15"
query: max(irate(traefik_service_requests_total{exported_service="podinfo-lupass-podinfo-9898@kubernetes"}[1m]))
EOF
)
}
Deploy its and check.

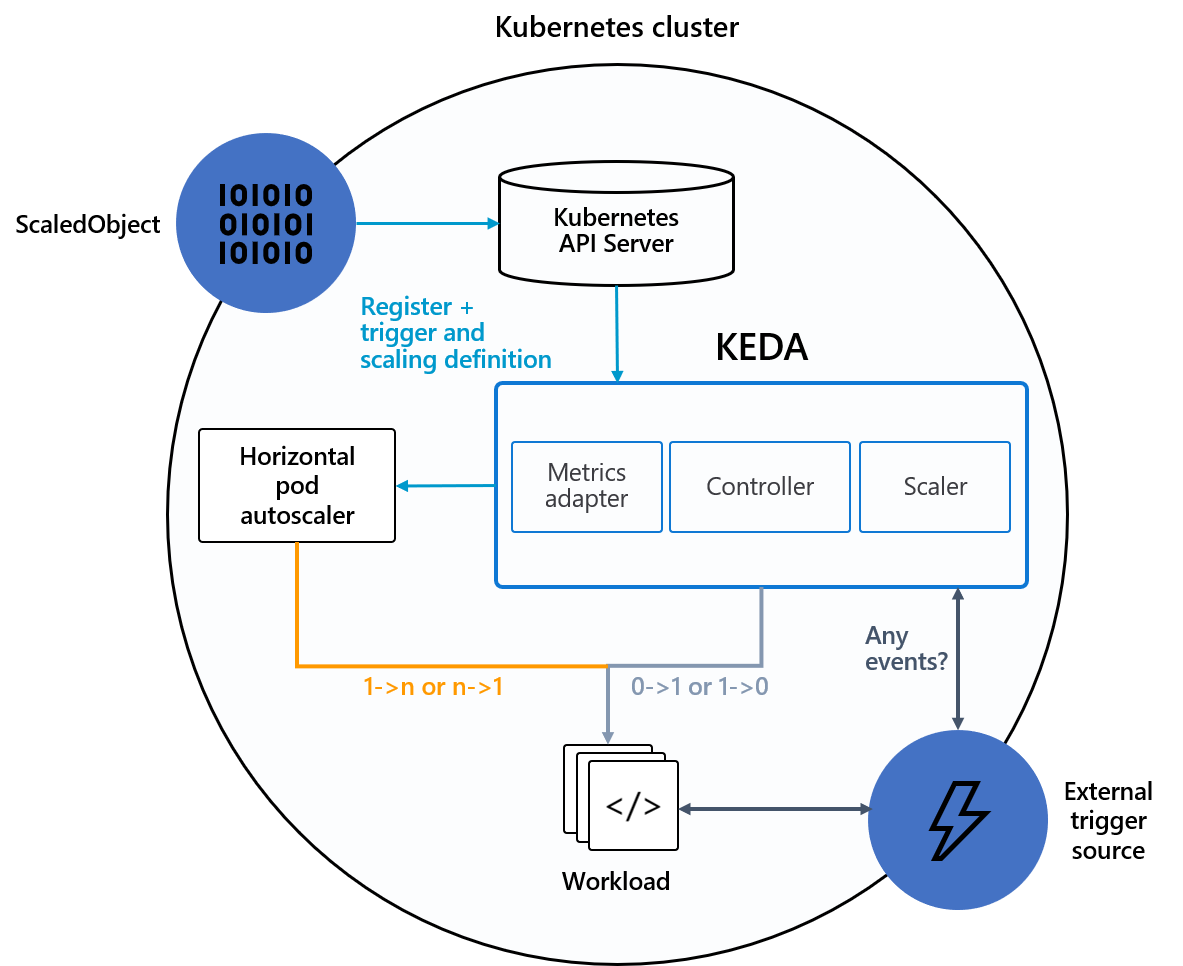

Under the hood, KEDA acts to monitor the event source and feed that data to Kubernetes and the HPA (Horizontal Pod Autoscaler) to drive rapid scale of a resource. (KEDA)
> k get all -n podinfo
NAME READY STATUS RESTARTS AGE
pod/lupass-podinfo-6fbb499f65-cr6p6 1/1 Running 0 4h19m
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/lupass-podinfo ClusterIP 10.43.123.152 <none> 9898/TCP,9999/TCP 2d4h
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/lupass-podinfo 1/1 1 1 2d4h
NAME DESIRED CURRENT READY AGE
replicaset.apps/lupass-podinfo-6fbb499f65 1 1 1 2d4h
NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE
horizontalpodautoscaler.autoscaling/keda-hpa-scale-podinfo Deployment/lupass-podinfo 0/15 (avg) 1 8 1
Now install locust on the cluster to perform load testing on our target application in order to trigger and test the autoscaling:
resource "kubernetes_namespace" "locust" {
metadata {
name = "locust"
}
}
resource "kubernetes_deployment" "locust" {
metadata {
name = "locust"
namespace = kubernetes_namespace.locust.metadata.0.name
}
spec {
selector {
match_labels = {
"app" = "locust"
}
}
template {
metadata {
labels = {
"app" = "locust"
}
}
spec {
container {
name = "locust"
image = "locustio/locust"
port {
container_port = 8089
}
volume_mount {
mount_path = "/home/locust"
name = kubernetes_config_map.locust_script.metadata.0.name
}
}
volume {
name = kubernetes_config_map.locust_script.metadata.0.name
config_map {
name = kubernetes_config_map.locust_script.metadata.0.name
}
}
}
}
}
}
resource "kubernetes_service" "locust" {
metadata {
name = "locust"
namespace = kubernetes_namespace.locust.metadata.0.name
}
spec {
selector = kubernetes_deployment.locust.spec.0.selector.0.match_labels
port {
port = 8050
target_port = 8089
}
type = "LoadBalancer"
}
}
resource "kubernetes_config_map" "locust_script" {
metadata {
name = "locust-script"
namespace = kubernetes_namespace.locust.metadata.0.name
}
data = {
"locustfile.py" = file("${path.root}/locustfile.py")
}
}
from locust import HttpUser, task
class HelloWorldUser(HttpUser):
@task
def hello_world(self):
self.client.get("/")
> k get all -n locust
NAME READY STATUS RESTARTS AGE
pod/locust-7f89d687d-2vqgk 1/1 Running 0 5h27m
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/locust LoadBalancer 10.43.1.220 172.24.87.51 8050:32611/TCP 5h15m
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/locust 1/1 1 1 5h27m
NAME DESIRED CURRENT READY AGE
replicaset.apps/locust-7f89d687d 1 1 1 5h27m

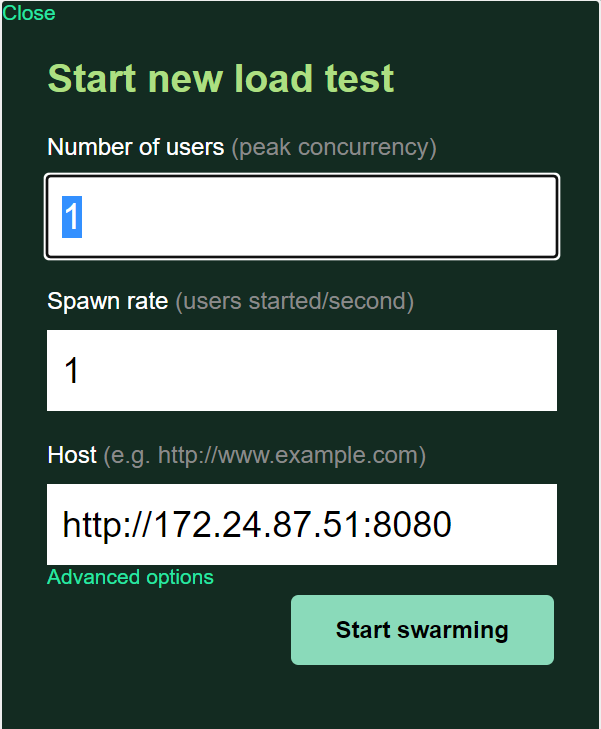

Now, go to locust page and start the load testing:

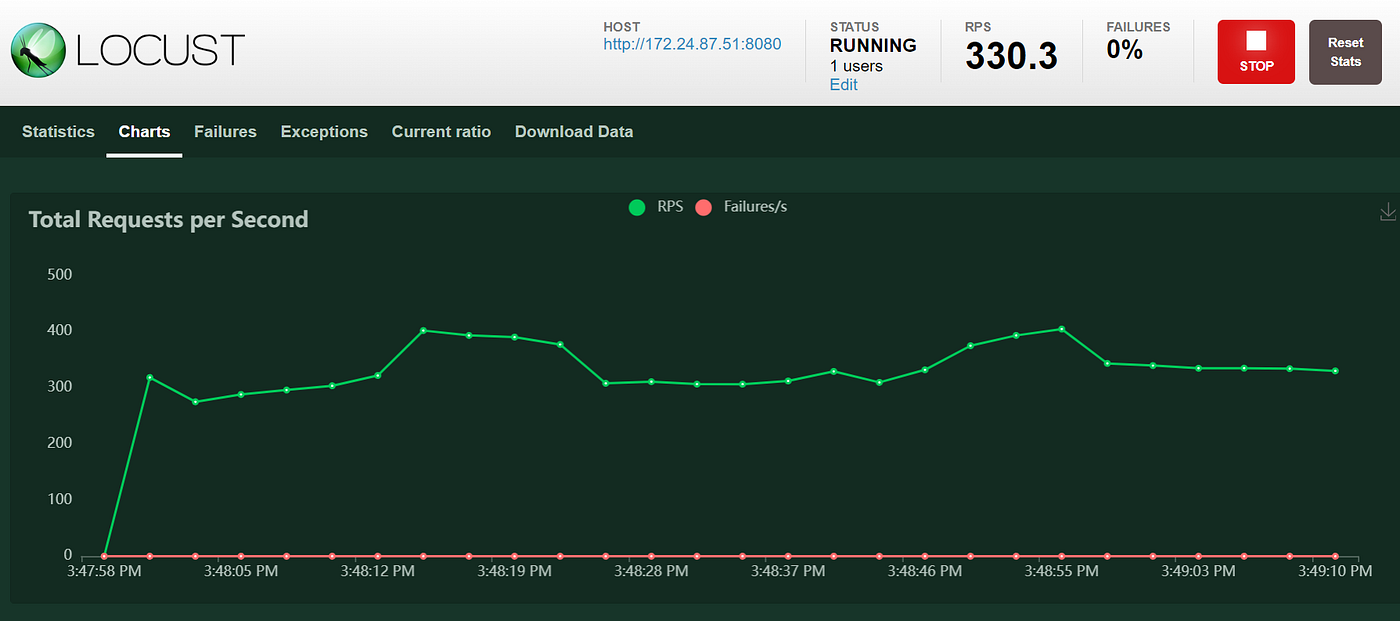

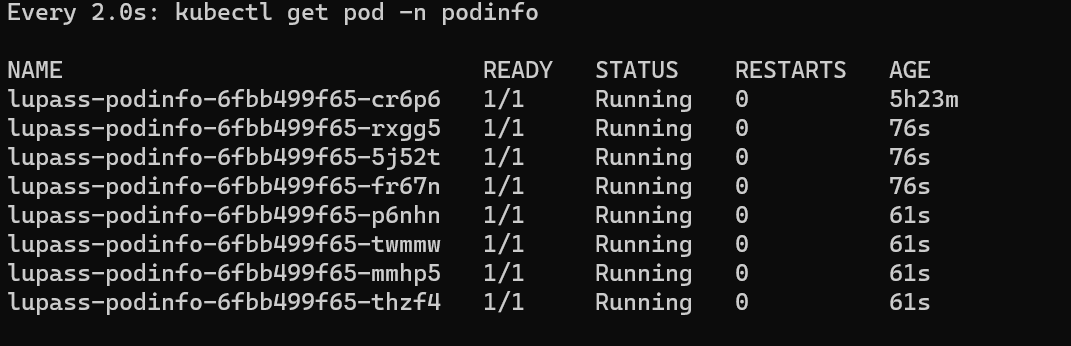

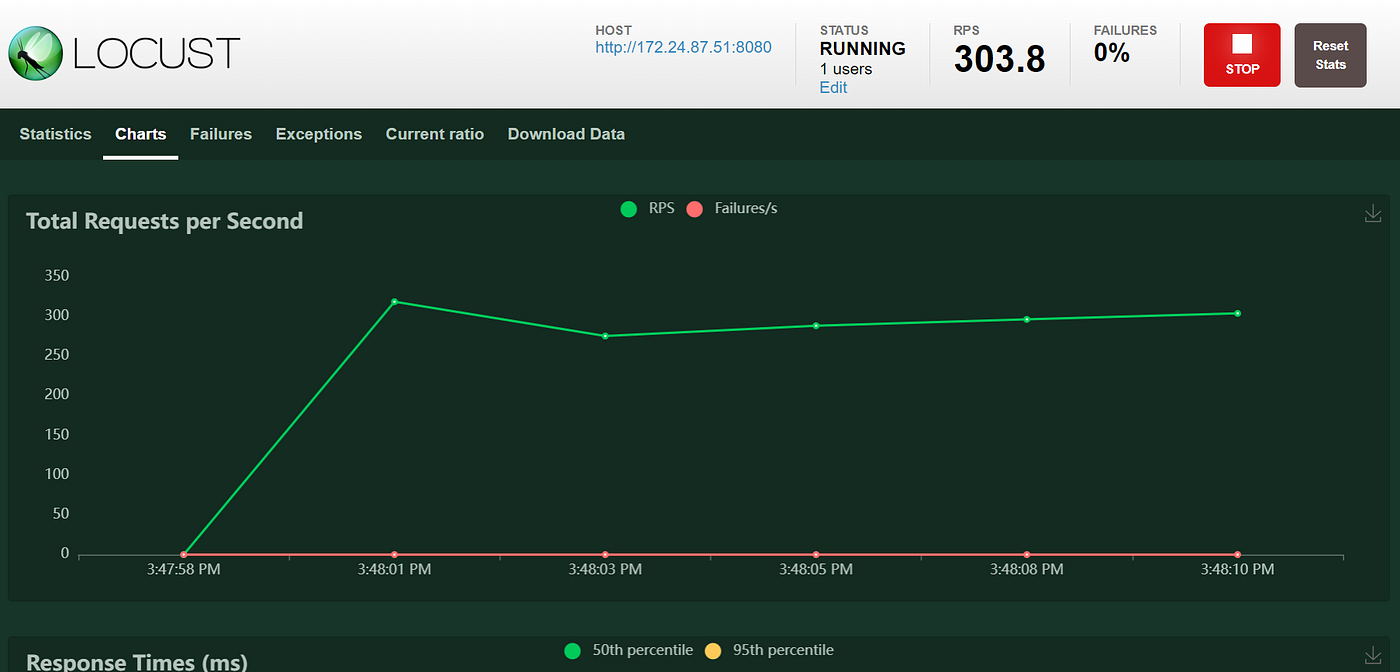

As we can see this trigger the autoscaling of our workloads that thanks to KEDA scale quickly! :
In this way you can scale easly and efficiently your workloads and unlock Kubernetes Power thanks to KEDA Event-Driven Autoscaler!
